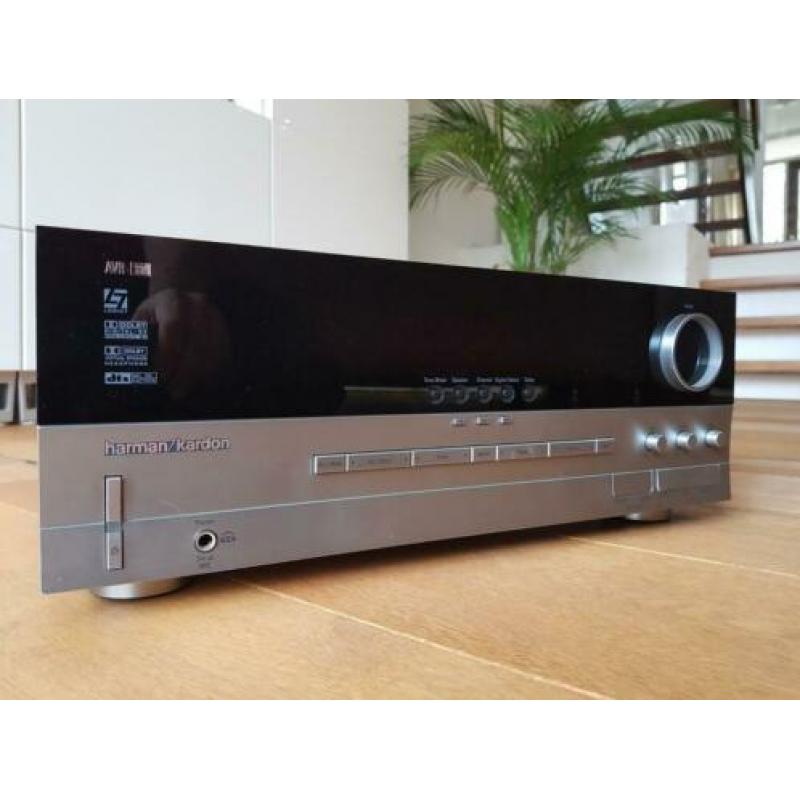

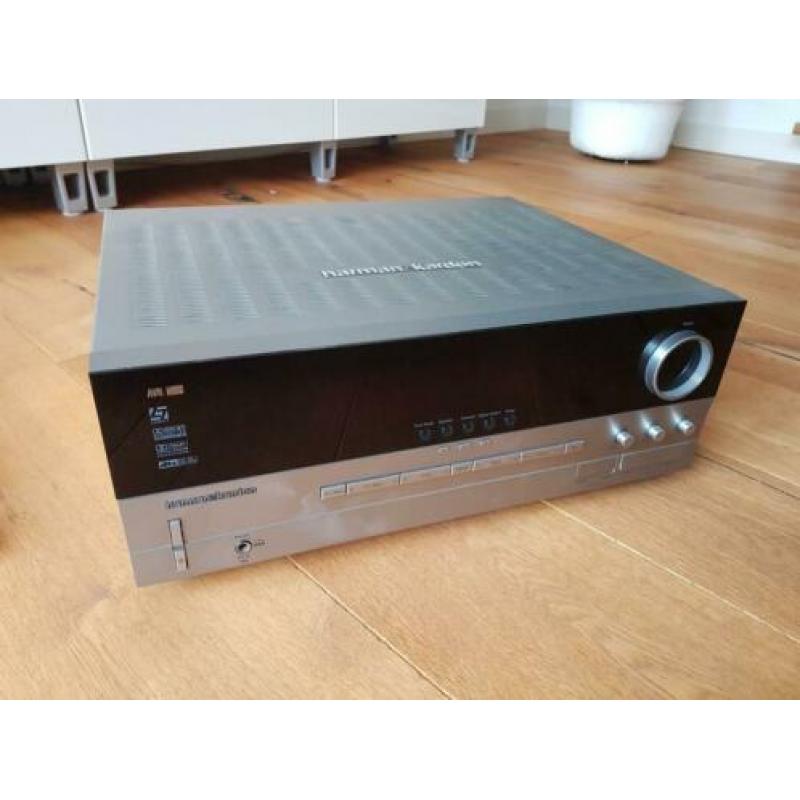

Harman Kardon AVR 335

---

Mooie 7.1 Receiver van Harman Kardon met zeer veel instelmogelijkheden.

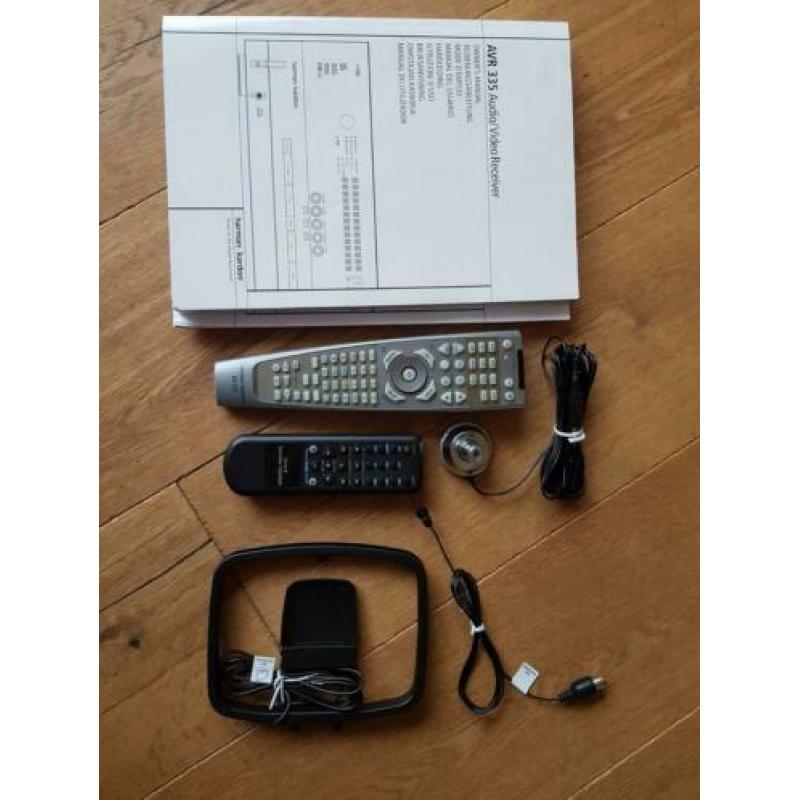

Inclusief meetmicrofoon voor het instellen van de kanalen. Instelmenu kan je via de TV zien.  Inclusief handleiding, antennes en twee afstandbedieningen.


AUDIO

Amplifier Output Details55 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.07% - 2 channels (front)

55 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.07% - 1 channels (center)
55 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.07% - 2 channels (surround)
55 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.07% - 2 channels (surround back)
70 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.07% - 2 channels (main)

Response Bandwidth10 - 130000 Hz

Signal-To-Noise Ratio100 dB

AUDIO SYSTEM

TypeAV receiver

SubcategoryAV components

FunctionsAV receiver

Audio D/A Converter24bit / 192kHz

Built-in DecodersDTS Neo:6, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, Dolby 3 Stereo, Dolby Digital, Dolby Digital Surround EX, Dolby Pro Logic II, Dolby Pro Logic IIx

Surround Sound EffectsDolby Headphone, Dolby Virtual Speaker, VMAx virtual surround sound

Surround System Class7.1 channel

Digital Sound Processor (DSP)Yes

DSP Presets5ch stereo, 7ch stereo, Hall, Logic 7, Theater, VMAx

Additional FeaturesEzSet+, Midnight Mode, balance control, multi-room audio output, on-screen display

Bass ControlYes

Treble ControlYes

Built-in Clocksleep timer

POWER DEVICE

Nominal VoltageAC 120 V

Frequency Required60 Hz

Power Consumption Operational890 Watt

Power Outlets2 AC outlets

Typepower supply

TUNER

Tuner TypeRadio tuner - AM/FM - digital

Signal-To-Noise Ratio70 dB

Total Harmonic Distortionmono: 0.2%, stereo: 0.3%

AMPLIFIER OUTPUT DETAILS

Output Power / Channel55 Watt, 70 Watt

Output Impedance / Channel8 Ohm

Frequency Response20 - 20000 Hz

Total Harmonic Distortion (THD)0.07 %

Channel Typecenter, front, main, surround, surround back

Channel Qty1, 2

INPUTS & OUTPUTS

Headphone JackYes

Coaxial Digital InputYes

Coaxial Digital OutputYes

Optical Digital InputYes

Optical Digital OutputYes

ACCESSORIES

Supported DevicesCD player, DVD player, TV, VCR, cable box, cassette deck, satellite TV system

Featurescode search function, macro function, multi-brand compatibility

AUDIO SPECIFICATIONS

TypeAmplifier

Frequency Response10 - 130000 Hz

Signal-To-Noise Ratio100 dB, 70 dB

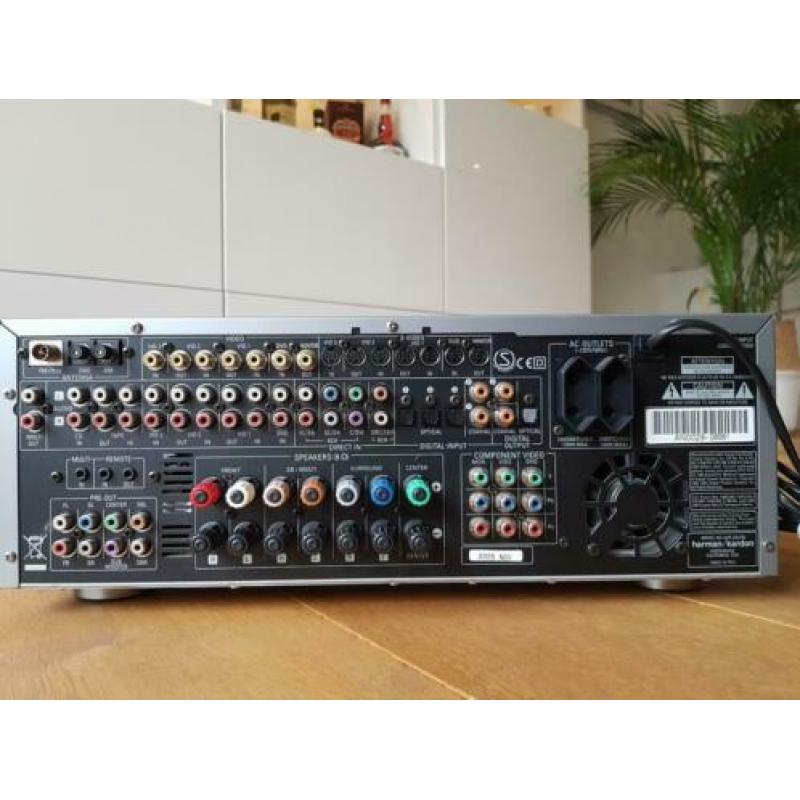

CONNECTIONS

Qty1, 2, 3, 4, 7

Type7.1 channel audio line-in, S-Video input, S-Video output, SPDIF input, SPDIF output, audio line-in, audio line-out, audio line-out (multi zone), component video input, component video output, composite video/audio input, composite video/audio output, headphones, monitor output, remote control, speakers output

Connector Type4 pin mini-DIN, RCA, RCA x 2, RCA x 3, RCA x 8, TOSLINK, banana/spade x 2, mini-phone 3.5 mm, phone stereo 6.3 mm

Connector Locationfront, rear
